Proven 12V → 3.3V Buck Power Block (3A) – Pre-PCB Safe

A proven 12V to 3.3V buck converter PCB design with schematic, layout, and BOM for ESP32 and other 3.3V systems.

Stop Losing Money on Power-Related PCB Re-Spins

This is a proven 12V → 3.3V buck converter power block (up to 3A) created after months of failed R&D and costly PCB re-spins caused by power design mistakes.

Instead of over-optimizing LDOs and experimenting endlessly, this design locks a known-good buck architecture early — the same decision that finally stabilized my own circuit.

This product is built for early to mid-stage R&D, where speed and reliability matter more than theoretical perfection.

✅ What You Get

• ✔️ Proven schematic (reference-design based)

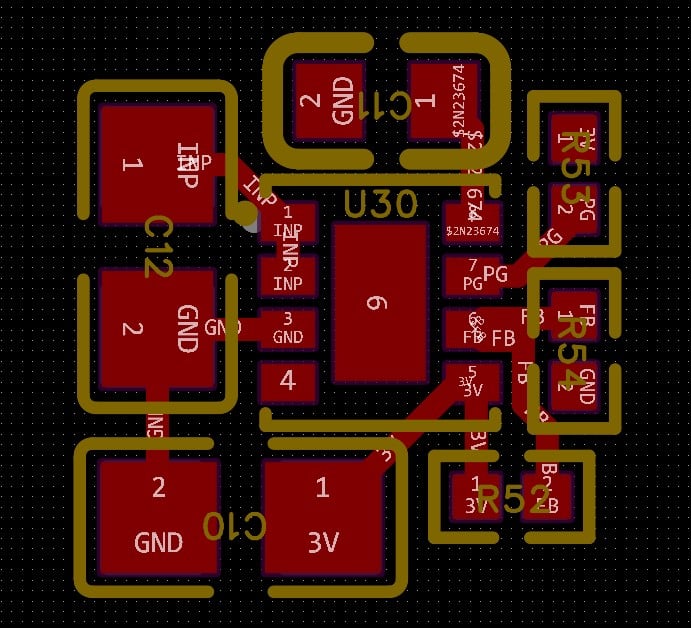

• ✔️ PCB layout files (the most failure-prone part)
• ✔️ BOM with practical component choices
• ✔️ Design limits and usage rules
• ✔️ Real failure story: why LDO-based R&D failed and why this worked

This is not a tutorial.
This is a drop-in, confidence-building power block.

Who This Is For

• Electronics designers working with 12V systems
• Teams needing a stable 3.3V rail up to 3A
• R&D teams who want to avoid PCB re-spins
• Engineers who want to ship faster, not experiment longer

What This Is NOT

• Not a universal power solution
• Not EMI-certified for mass production
• Not a replacement for system-level validation

It is validated for early to mid-stage R&D, where power mistakes are most expensive.

💡 Why This Exists

I lost significant time and money debugging unstable power caused by the wrong architecture choice (LDO-based designs running hot and failing under load).

The moment I switched to a buck converter and followed a proven reference design, the problem was solved immediately.

This product exists so you don’t have to learn that lesson the expensive way.

This power block was validated after months of failed LDO-based R&D and costly PCB re-spins—so you don’t repeat the same mistake.
